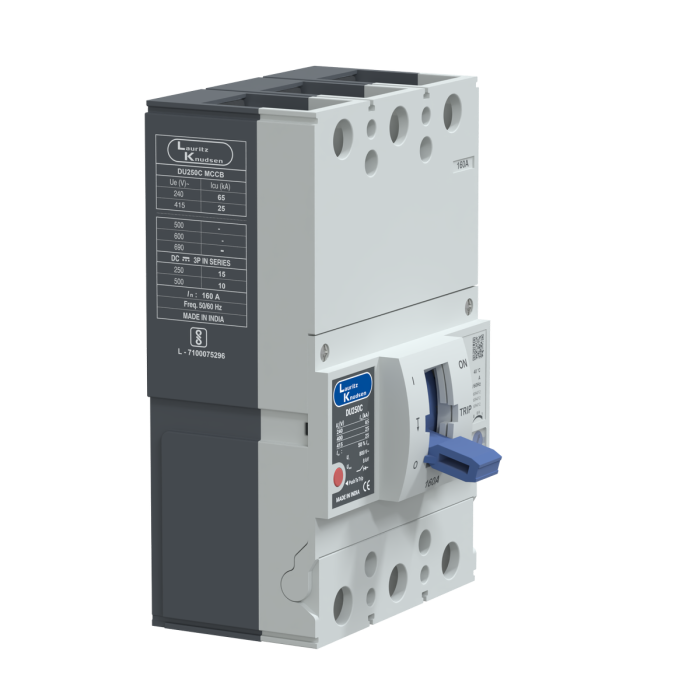

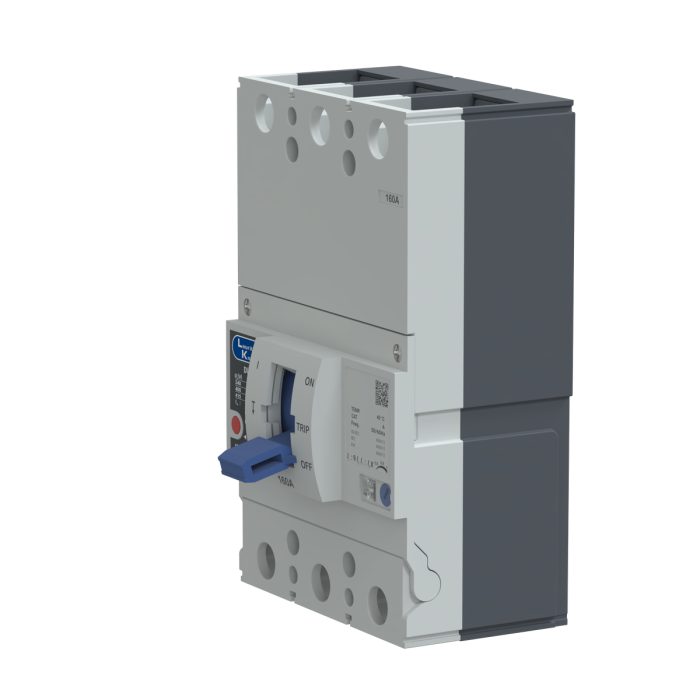

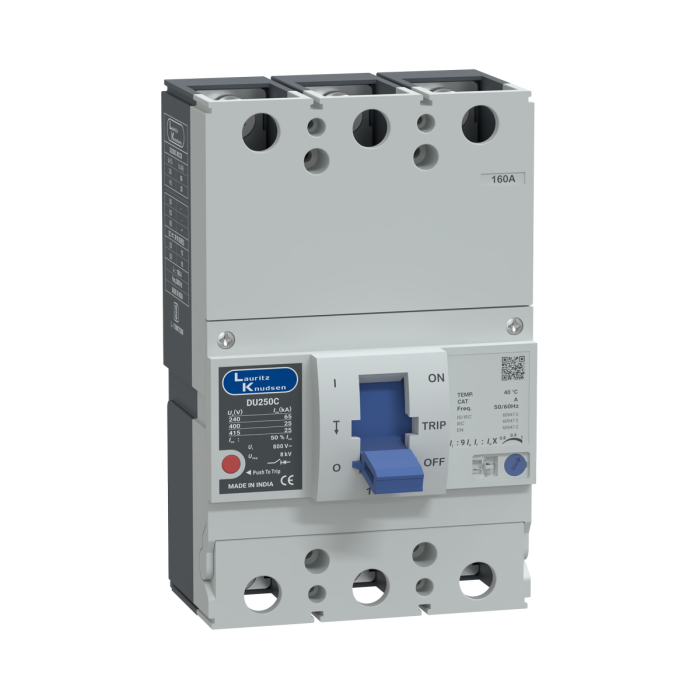

L&T/LK DU250C 160Amp 3Pole 25ka MCCB (CM90631OOMO)

Description

• Rated Operational Current (A)-160A
• No. of Poles-3P
• Rated Operational voltage (Ue)-415V AC
• Rated Insulation Voltage Ui (V)-800 V
• Rated impulse withstand voltage (Uimp)-8 kV
• Operational Frequency (Hz)-50/60 Hz
• Release Type-Thermal Magnetic
• Rated Short Circuit Breaking capacity Icu(kA)-25kA
• Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC-50%
• Ambient temperatur–5°C to 55°C
• Conformance to Standards-IS 60947-2, IEC 60947-2 & EN 60947-2
• Suitable for isolation-Yes
• Load-line bias-No
• Electrical Life (Operating Cycles)-5000
• Mechanical Life (Operating Cycles-15000
• IP Protection-IP40
• Pollution Degree-III
• Width(mm)-105
• Height(mm)-165
• Depth(mm)-60
• Discount Percentage-Between 0-10 %

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
