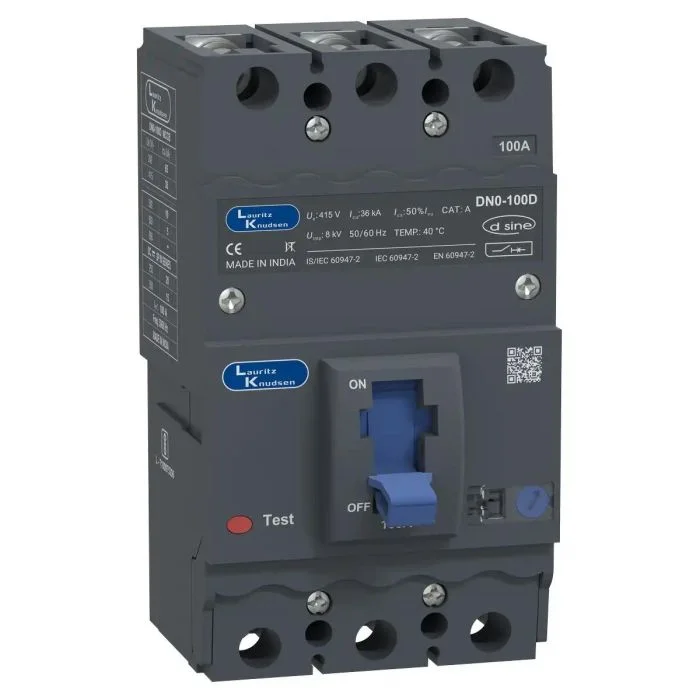

L&T/LK dsine DN0-100D 100A 3Pole 36ka MCCB Thermal – Magnetic Release(CM97893OOK2OG)

Description

Features

• Conforms to IS/IEC 60947-2
•  100A, 3Pole 36kA
• Ics= 100% of Icu*
• Adjustable overload settings: 0.8 – 1.0 x In
• Adjustable short-circuit settings: 6 – 10 x In**
• Manual, Rotary and Motorised versions available
• Wide range of accessories
• Above Image is Only for Reference Purpose,Actule Product Image May Very

• Rated Operational Current-100A
• Mechanical Life (No. of operating cycles)-40000
• No. of Poles-3P
• Rated Operational voltage (Ue)-415V AC
• Rated Insulation Voltage Ui (V)-800 V
• Conformance to Standards-IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4
• Rated impulse withstand voltage (Uimp)-8 kV
• Operational Frequency (Hz)-50/60 Hz
  Release Type-Thermal Magnetic
  Rated Short Circuit Breaking capacity Icu(kA)-36kA
• Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC-0.5
• Ambient temperature–5°C to 55°C
• Suitable for isolation-Yes
• Load-line bias-No
• Electrical Life (Operating Cycles)-8000
• IP Protection-IP40
• Pollution Degree-III
• Width(mm)-75
• Height(mm)-130
• Depth(mm)-60
